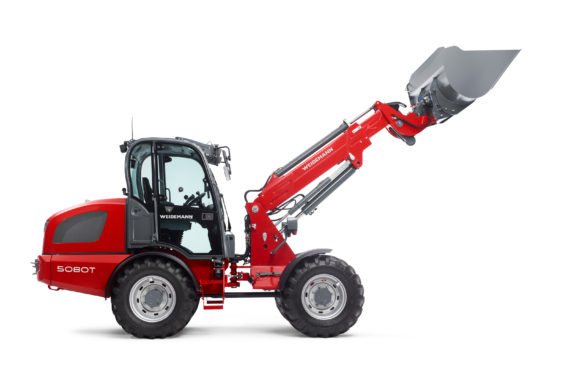

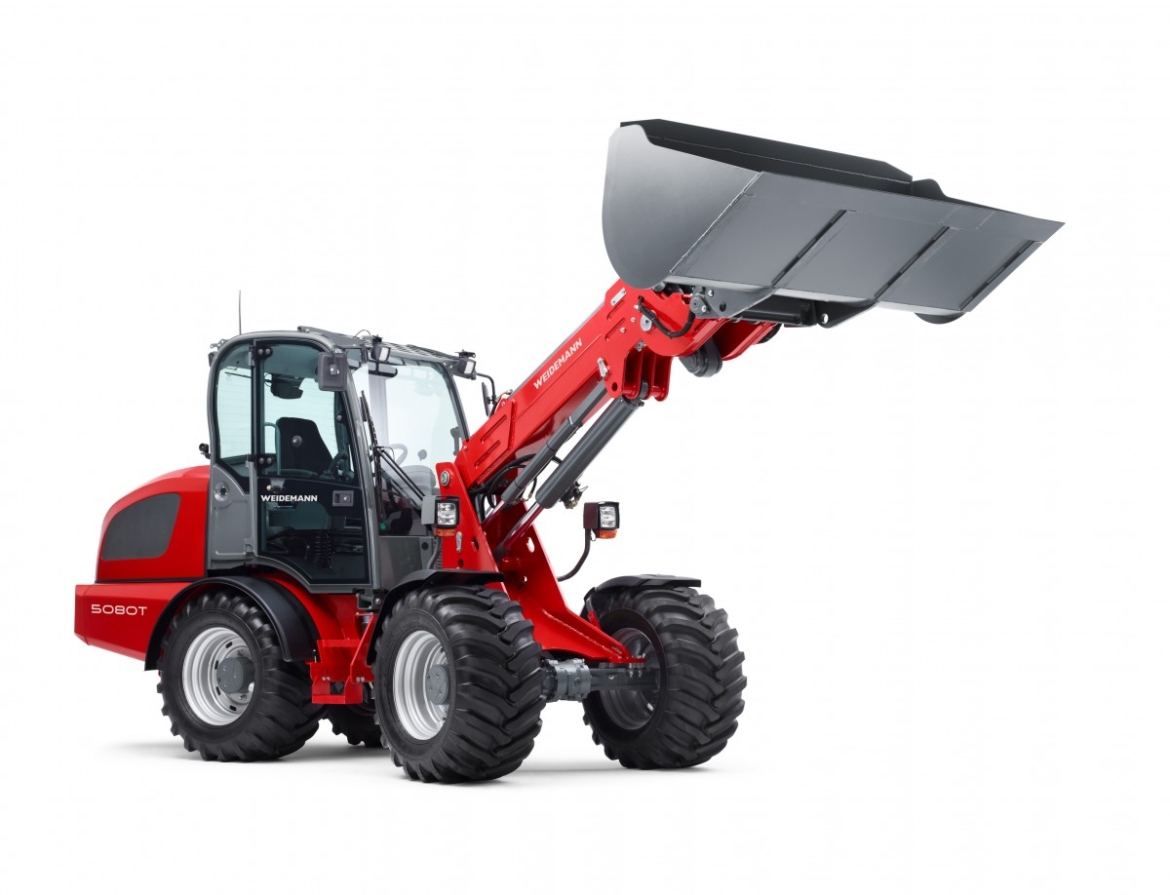

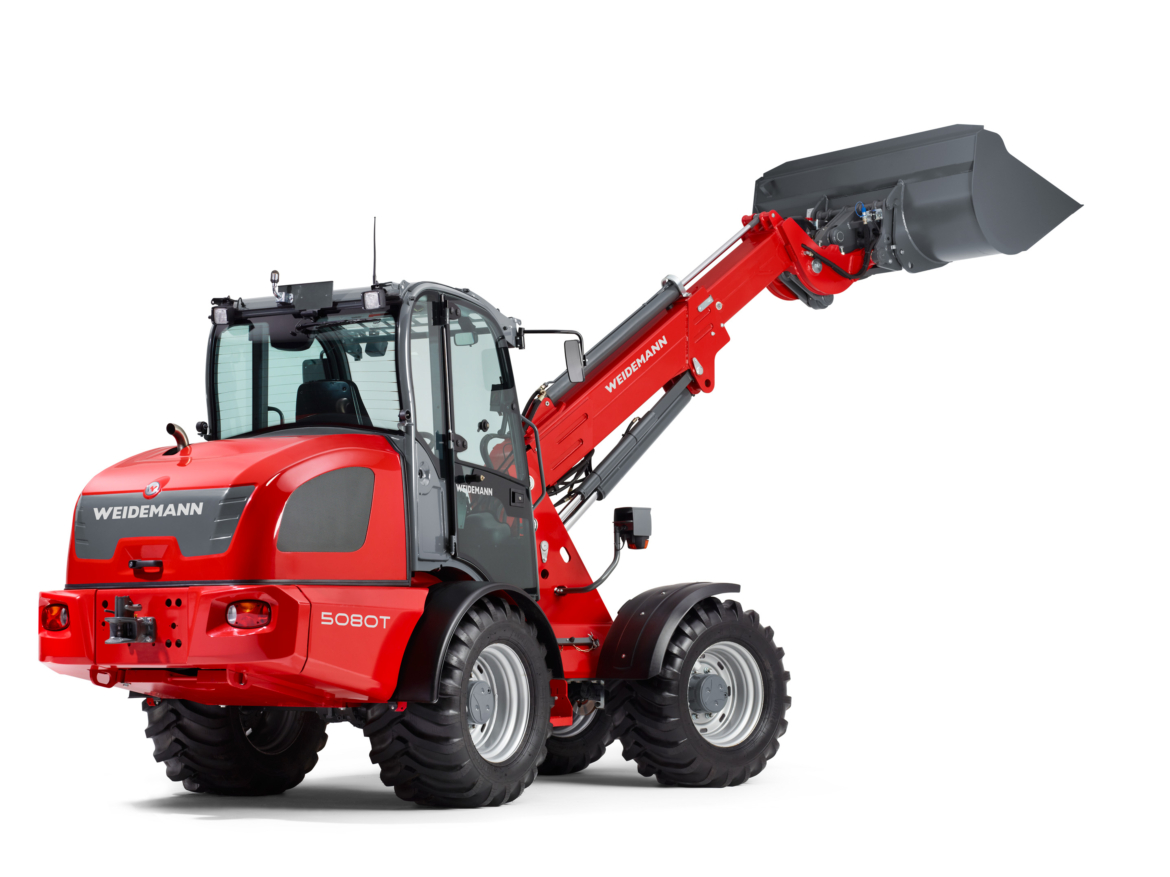

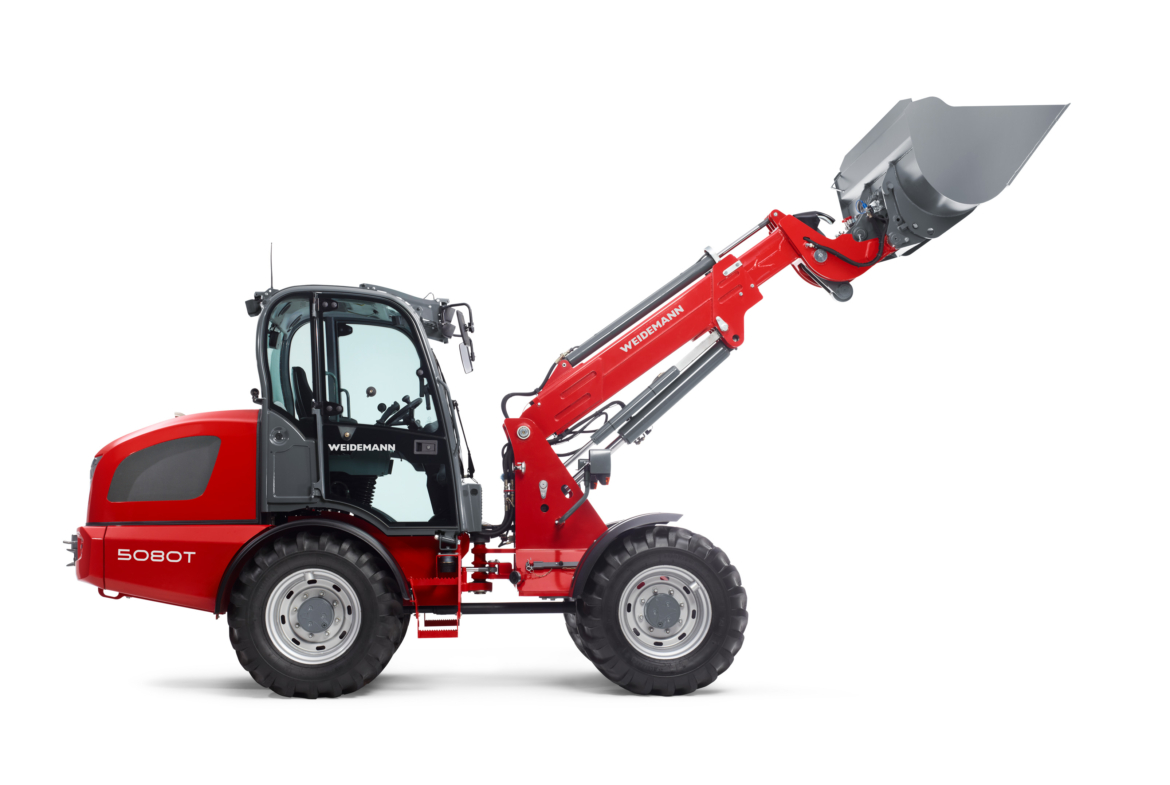

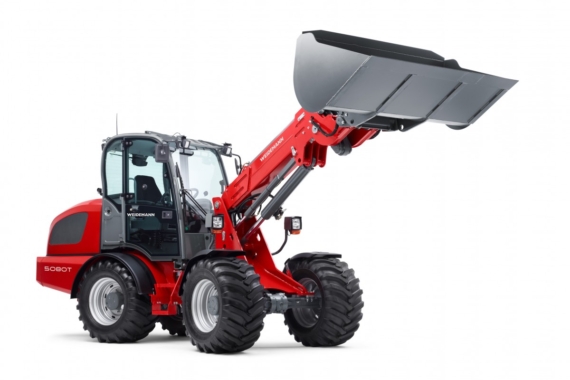

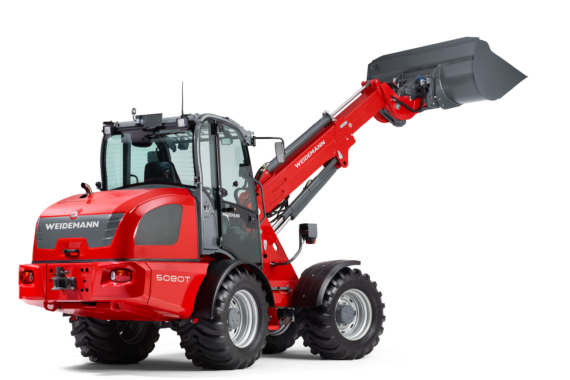

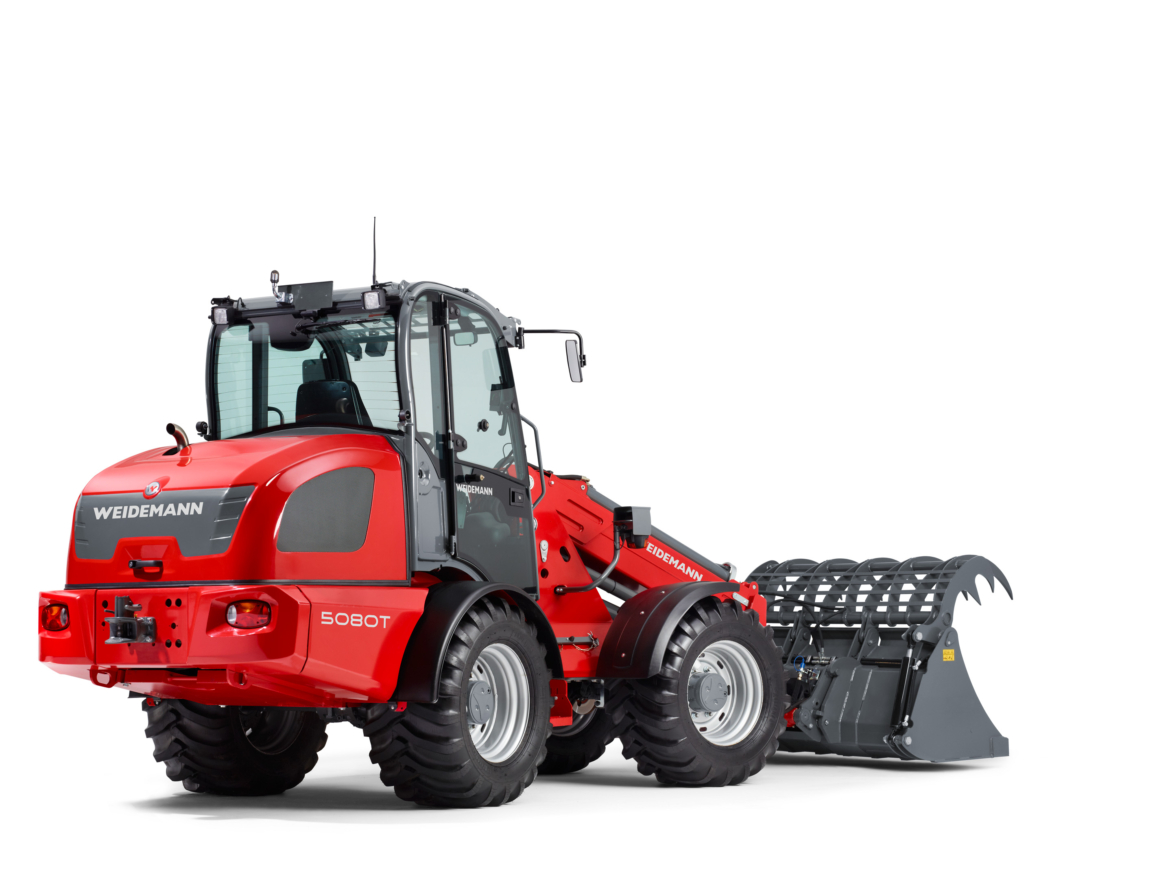

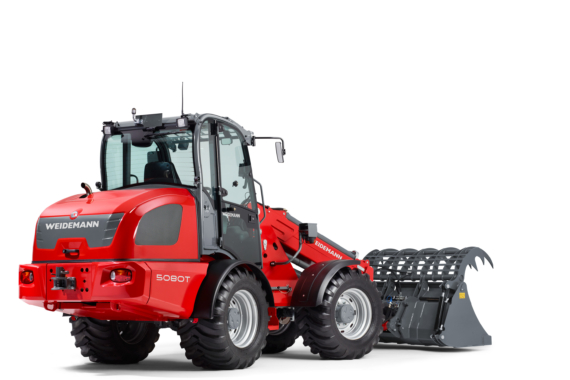

Teleskoopmastiga rataslaadur 5080 T

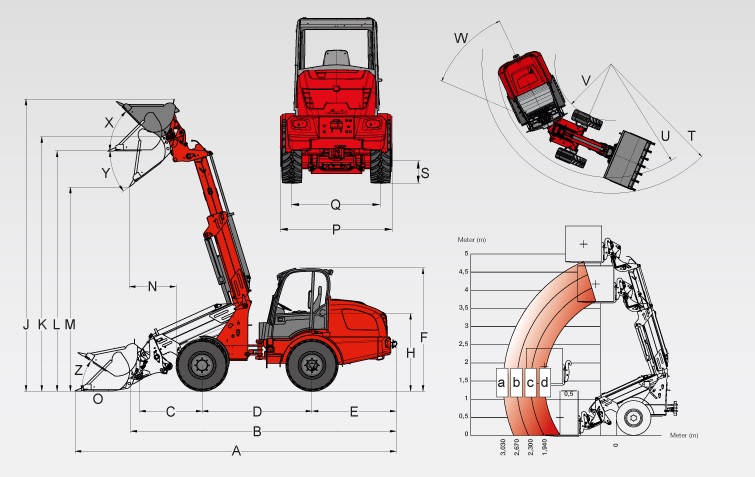

A – 6396 mm
B – 5200 mm
C – 1245 mm
D – 2189 mm
E – 1676 mm
F – 2694 mm
H – 1622 mm
J – 5839 mm
K – 5091 mm
L – 4805 mm
M – 4086 mm
N – 916 mm
P – 1990 mm
Q – 1422 mm
S – 375 mm
T – 4473 mm
U – 3928 mm
V – 1878 mm
W – 42°
X – 45°
Y – 33°
Z – 41°
