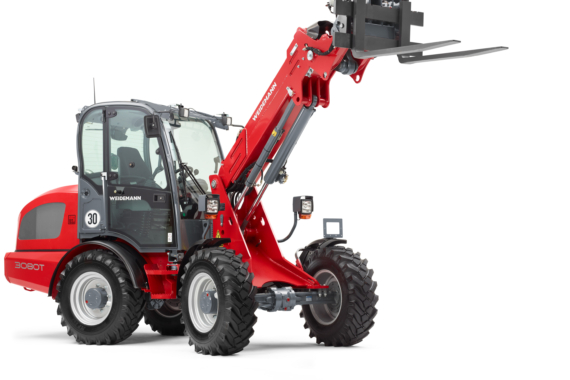

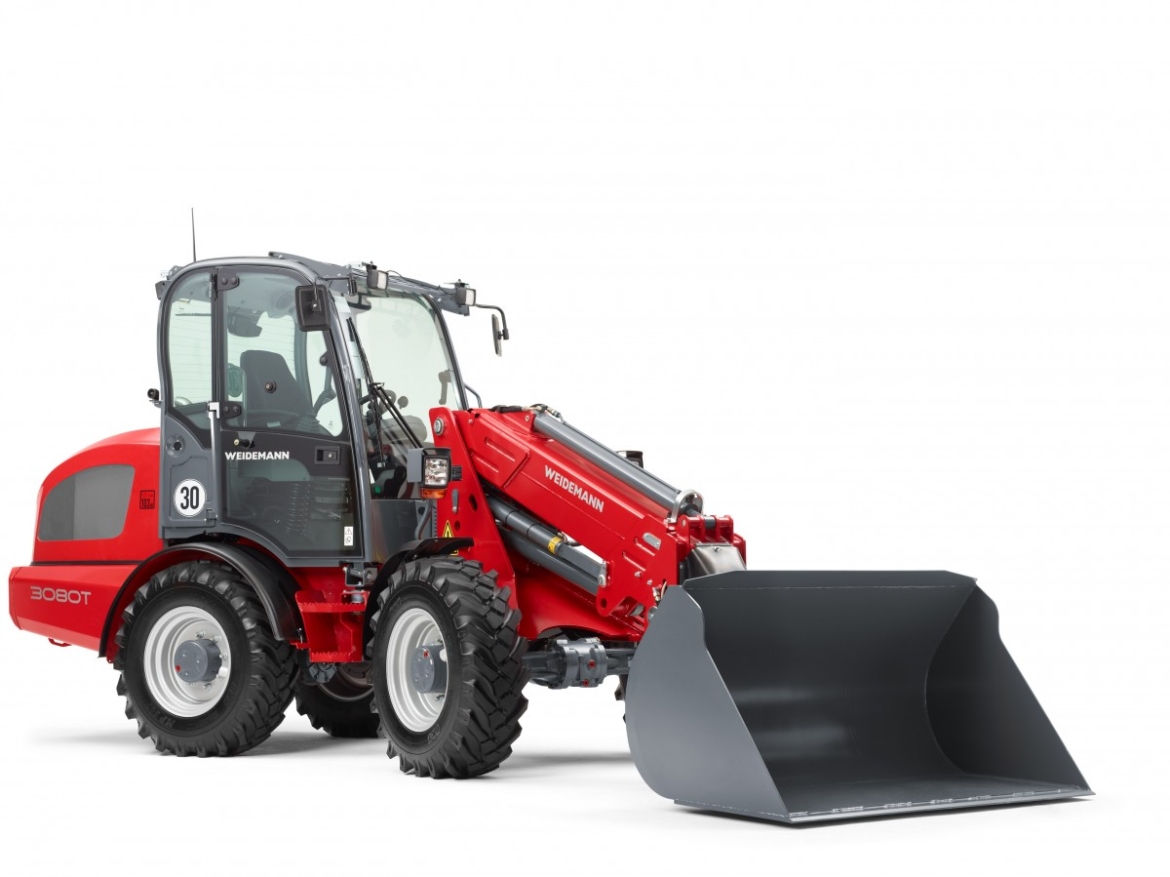

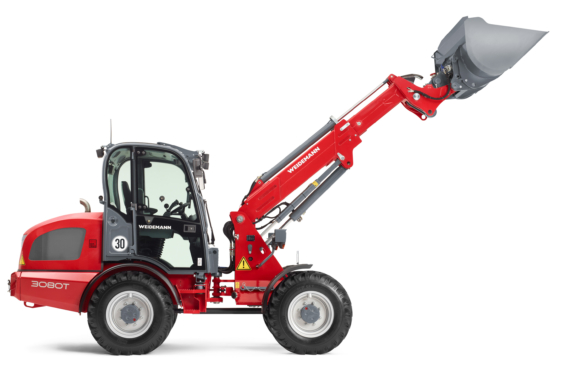

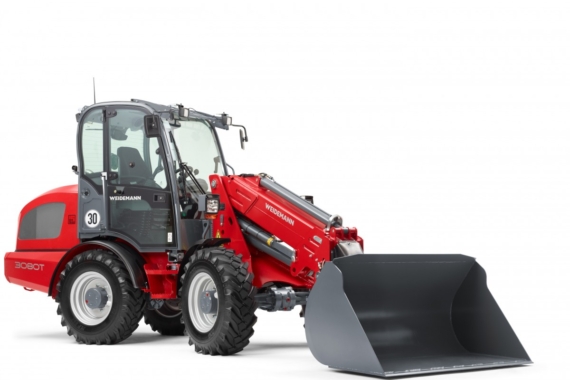

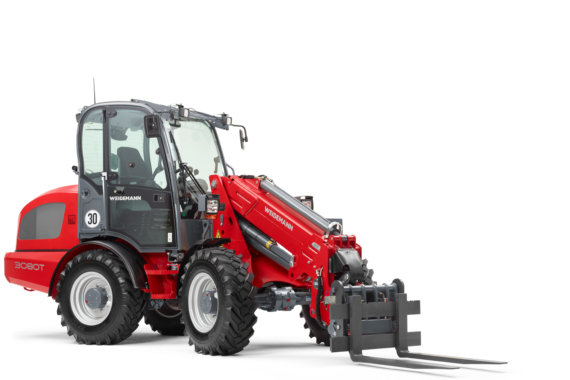

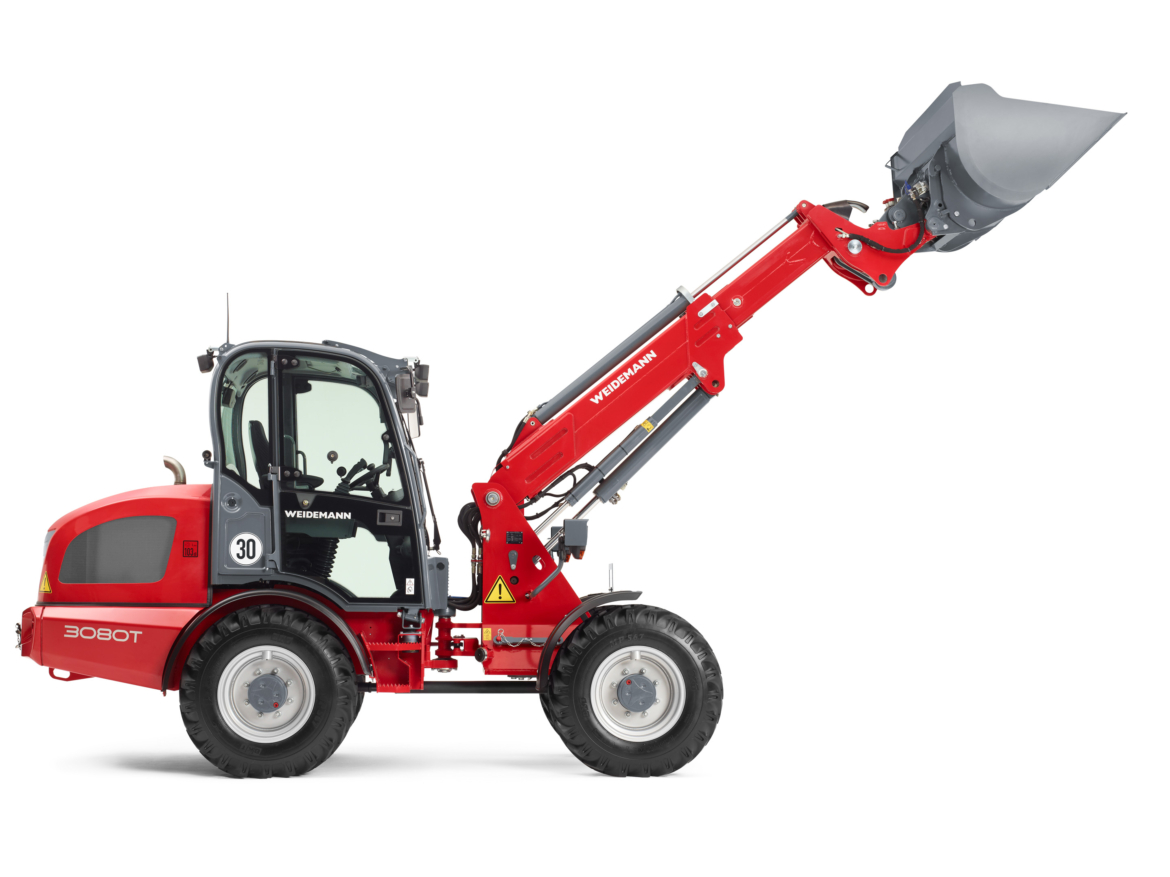

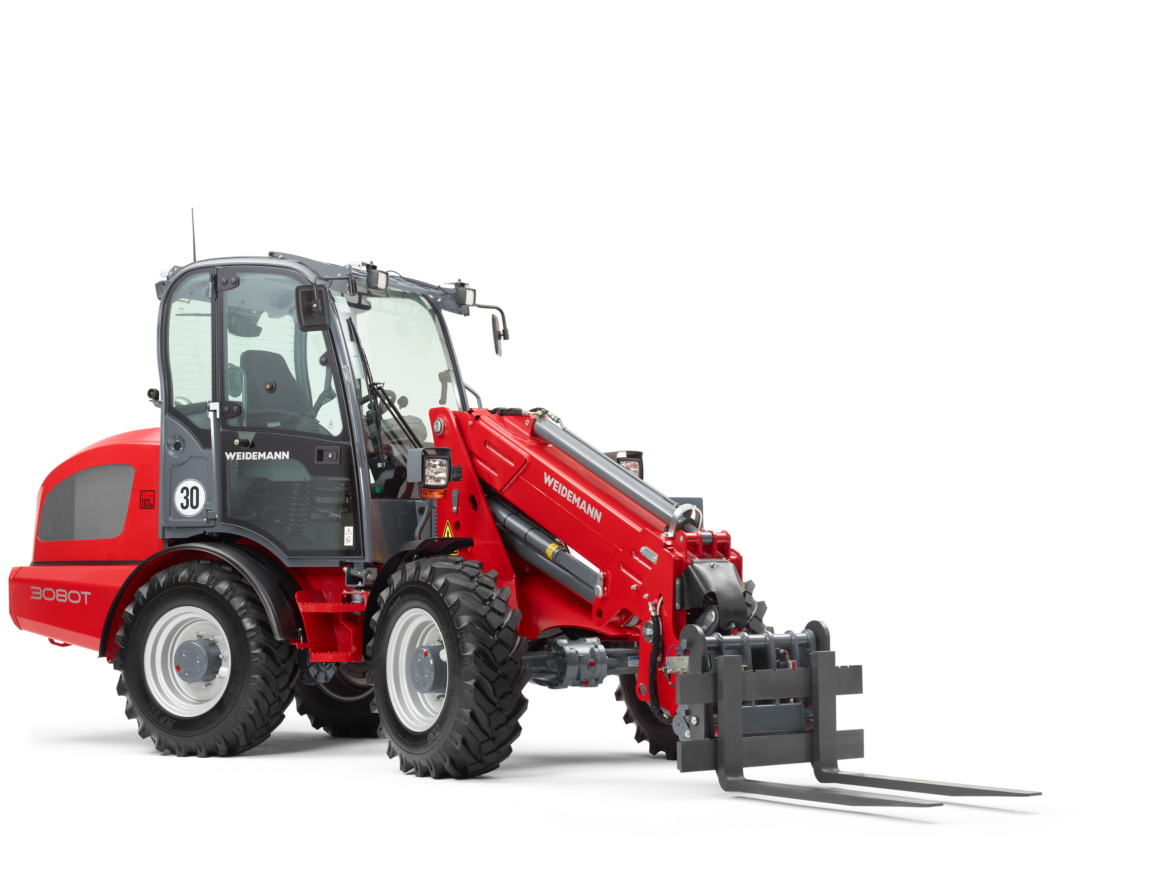

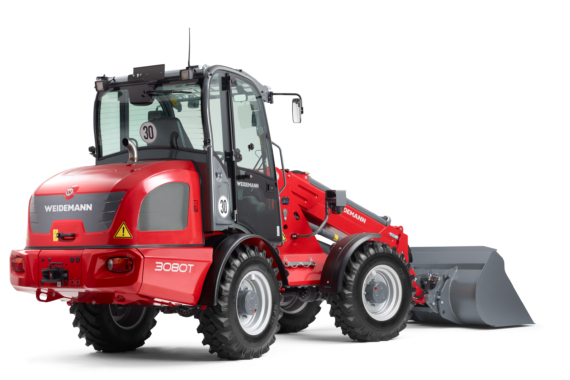

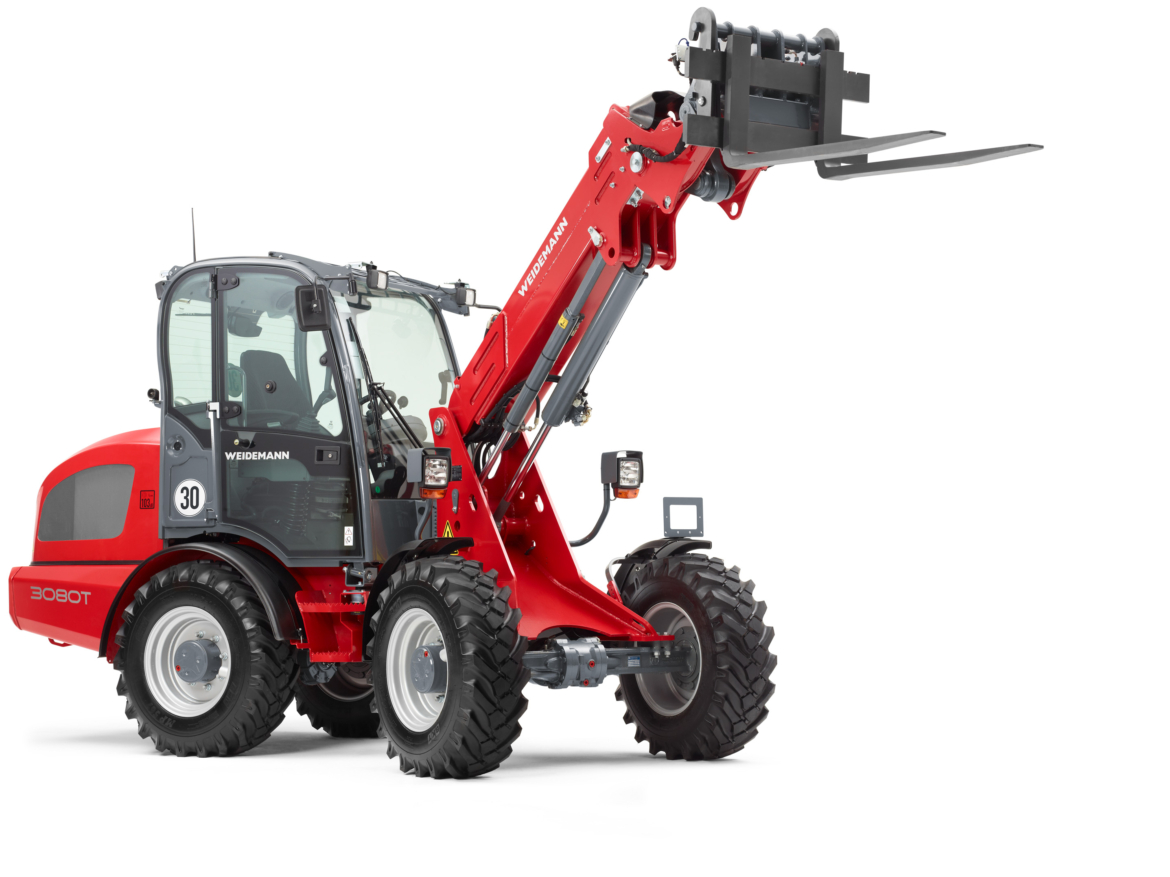

Teleskoopmastiga rataslaadur 3080 T

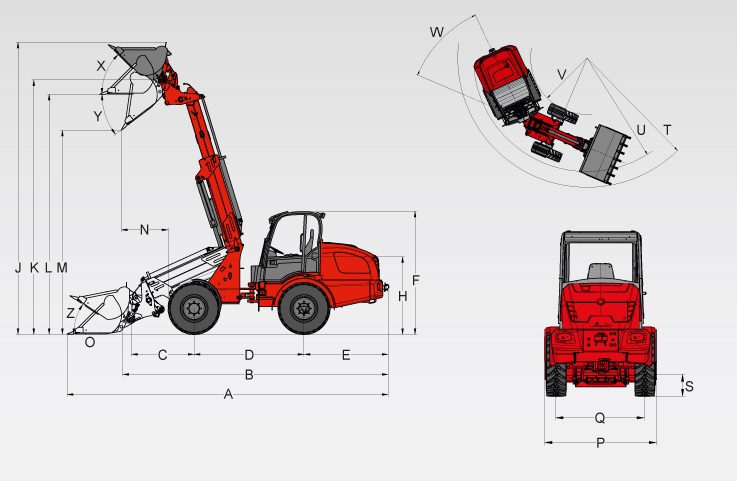

A – 5901 mm
B – 5135 mm
C – 1246 mm
D – 2189 mm
E – 1531 mm
F – 2454 mm
H – 1518 mm
J – 5751 mm
K – 5016 mm
L – 4572 mm
M – 4222 mm
N – 780 mm
O – 205 mm
P – 1580 mm
Q – 1211 mm
S – 323 mm
T – 3943 mm
U – 3461 mm
V – 1685 mm
W – 42°
X – 45°
Y – 25°
Z – 35°
